Overview
- Condition: New vehicle
- Manufacturer: Can-Am

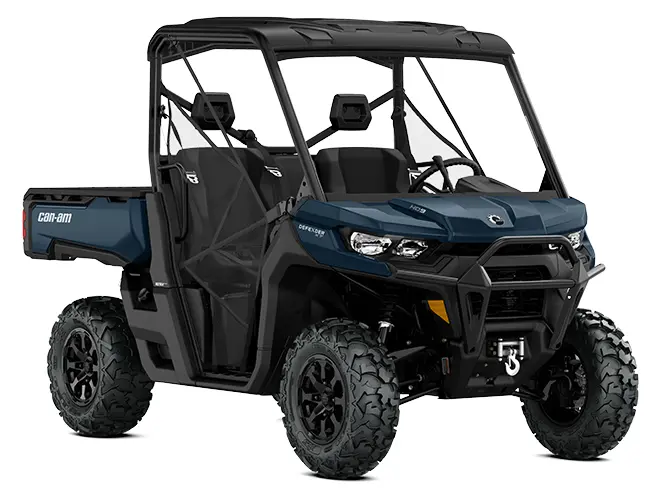

- Model: Defender XT HD9
- Year: 2025
- Stock #: B9798
- Type: Sides-by-sides
- VIN: 3JBUKAP40SK005496
- Engine: Bleu Cendré
Specifications
- Type: HD7: 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled
HD9: 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled - Fuel Delivery System: Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
- Transmission: HD7: pDrive primary CVT with engine braking and Electronic Drive Belt Protection, L / H / N / R / P
HD9/HD10: PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P - Drive Train: HD7: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
HD9: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
HD10: Selectable Turf Mode / 2WD / 4WD auto-Locking front differential - Driving Assistance: CVT Engine Braking
ECO™ / ECO™ Off / Work modes
Speed Limiter - Power Steering: Dynamic Power Steering (DPS)
- Front Suspension: HD7: Double A-arm / 10 in. (25.4 cm) suspension travel
HD9: Double A-arm / 10 in. (25.4 cm) suspension travel
HD10: Arched double A-arm / 11 in. (27.9 cm) suspension travel - Front Shocks: Twin tube gas charged shocks
- Rear Suspension: HD7: TTA with external sway bar / 10 in. (25.4 cm) suspension travel
HD9: TTA with external sway bar / 10 in. (25.4 cm) suspension travel
HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) suspension travel - Rear Shocks: Twin tube gas charged shocks
- Front Tires: HD7: XPS Trail Force 27 x 9/11 x 14 in.
HD9: XPS Trail Force 27 x 9/11 x 14 in.
HD10: XPS Trail King 27 x 9/11 x 14 in. - Rear Tires: HD7: XPS Trail Force 27 x 9/11 x 14 in.
HD9: XPS Trail Force 27 x 9/11 x 14 in.
HD10: XPS Trail King 27 x 9/11 x 14 in. - Wheels: 14 in. cast-aluminum
- Front: Dual 220 mm disc brakes with hydraulic twin-piston calipers
- Rear: Dual 220 mm disc brakes with hydraulic single-piston calipers
- Front and Rear: Brake holding mechanism
- LxWxH: HD7/HD9: 125.7 x 62 x 78 in. (319.4 x 157.5 x 198.1 cm)
HD10: 125.7 x 64 x 80 in. (319.4 x 162.5 x 203.2cm) - Wheelbase: 83 in. (211.5 cm)
- Ground Clearance: HD7/HD9: 11 in. (28 cm)
HD10: 13 in. (33 cm) - Chassis Cage: Profiled cage
ROPS approved - Dry Weight: HD7: 1,577 lb (717kg)
HD9: 1,606 lb (728,5 kg)
HD10: 1,623 lb (736 kg) - Cargo Box Dimensions: 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
- Cargo Box Capacity: 1,000 lb (454 kg)
- Tailgate Load Capacity: 250 lb (113.4 kg)
- Storage Capacity: Total: 16.2 gal (61.3 L)
- Towing Capacity: 2,500 lb (1,134 kg)
- Payload Capacity: 1,500 lb (680 kg)
- Fuel Capacity: 10.6 gal (40 L)
- Person Capacity: 3
- Type Of Gauge: 4.5 in. wide digital display
- Gauge: 4.5 in. wide digital display
- Battery: 12-V (30 amp/h)
- Magneto: 650-W
- Instrumentation: DC outlet (10-A)
USB Port (10-A) x 2 - Lighting: Front lighting output 140-W
LED tail lights - Winch: 4,500 lb (2,041 kg) winch with roller fairlead
- Seat: VERSA-PRO bolster bench seats with passenger seats flipping up
Adjustable driver seat, underside hooks, reinforced XT seat skin - Steering Wheel: Adjustable tilt steering
- Protection: XT Front bumper
HMWPE full skid plate
Full hard roof - Hitch Type: 2 in. hitch receiver
- Factory: 1-year BRP Limited warranty
- Extended: B.E.S.T. term available up to 30 months
Notes
Notes:
A person buys the 2025 Can-Am Defender XT HD9 when they want the perfect middle ground between affordability, performance, and features. It’s a smart choice for users who need more capability than the HD7 but don’t necessarily need to jump to the HD10. Here's what makes it a compelling buy:
🔧 1. More Power Where It Counts – Without Overkill-
The HD9’s 976cc Rotax V-Twin puts out 65 horsepower — a significant step up from the HD7’s 52 hp.
-
Ideal for towing heavier loads, climbing hills, or powering through deep mud or snow.
-
Best-in-class torque in this mid-range category, making it a workhorse for:
-
Hauling trailers
-
Pulling logs or equipment
-
Plowing snow with confidence
-
🧰 2. XT Package = Built-In Value🔹 Why it matters: Many users find the HD9 delivers 90% of the HD10’s muscle for a lower price and less fuel use.
The XT trim is loaded with practical upgrades from the base Defender:
-
4,500-lb winch with synthetic rope
-
Full steel front bumper
-
14” cast aluminum wheels and premium tires
-
Painted body panels and trim accents
You get a sharp look and ready-to-work utility straight from the factory, saving money over piecing together add-ons later.
-
It tows up to 2,500 lbs and has a 1,000-lb cargo bed capacity
-
Handles ranch duties, farm use, or hunting camps with ease
-
Less overbuilt and easier to handle than the HD10, but more capable than the HD7
It’s a great choice for people who split their UTV time between work and trail riding.
-
The HD9 uses the same heavy-duty frame, suspension, and driveline as the top-tier HD10
-
You get Smart-Lok (optional on XT models), high ground clearance, and true Can-Am durability
✅ You’re not “settling” — you’re getting the same platform with a mid-range engine that’s often more than enough.
