Overview
- Condition: New vehicle
- Manufacturer: Kawasaki

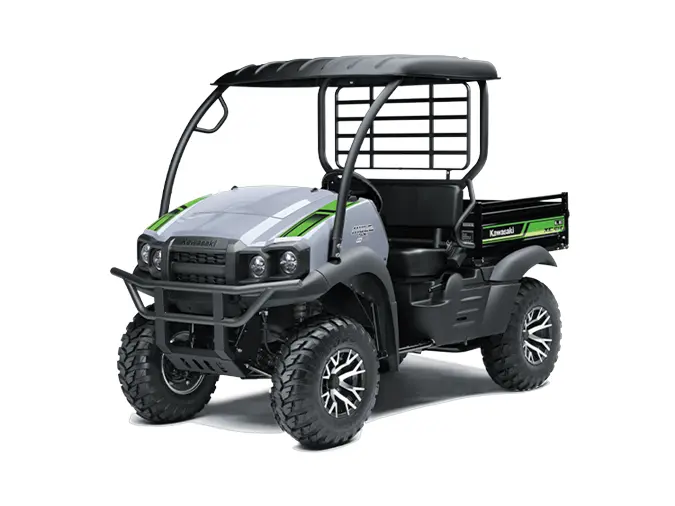

- Model: Mule SX 4X4 XC LE
- Year: 2025
- Stock #: K9746
- Type: Sides-by-sides
- VIN: JK1AFET10STD00687
- Engine: 9999
Specifications
- Engine: 401cc, air-cooled, 4-stroke, OHV single
- Bore x Stroke: 82.0 x 76.0 mm
- Compression Ratio: 8.6:1
- Fuel System: Fuel injection: ø23 mm x 1
- Ignition: Battery & coil
- Starting: Electric
- Lubrication: Forced lubrication, wet sump
- Transmission: 2-speed automatic, forward/reverse
- Final Drive: Gear, selectable 2WD/4WD, dual-mode differential
- Frame: Ladder type, tubular steel
- Front Suspension / Wheel Travel: Independent, MacPherson strut / 78 mm (3.1 in)
- Rear Suspension / Wheel Travel: Unit swing axle / 79 mm (3.1 in)
- Steering: Rack and pinion
- Rake / Trail: 9° / 50 mm
- Steering Angle (L/R): 41° (IN) / 35° (OUT), 41° (IN) / 35° (OUT)
- Front Tires: 26 x 9.00-12
- Rear Tires: 26 x 9.00-12
- Front Brakes: Dual hydraulic drums
- Rear Brakes: Dual hydraulic drums
- Parking Brake: Mechanical, on rear wheels
- Dimensions (LxWxH): 2,710 x 1,335 x 1,905 mm (106.7 x 52.6 x 75.0 in)
- Wheelbase: 1,780 mm (70.1 in)
- Road Clearance: 190 mm (7.5 in)
- Seat Height: 840 mm (33.1 in)
- Curb Weight*: 498 kg (1,098 lb)
- Fuel Capacity: 16 litres
- Tread (F/R): 1,080 mm (42.5 in) / 1,050 mm (41.3 in)
- Turning Radius: 3.6 m (11.8 ft)
- Cargo Bed Dimensions (LxWxH): 905 x 1,040 x 245 mm (35.6 x 40.9 x 9.6 in)
- Cargo Bed Capacity: 181 kg (400 lb)
- Seating Capacity: 2
- Vehicle Load Capacity: 401 kg (884 lb)
- Towing Capacity: 500 kg (1,100 lb)
- Lighting: 4x LED headlights
- Instrumentation: Digital fuel gauge, hour meter
- Warranty: 36 months
- Kawasaki Protection Plus: 12 / 24 / 36 / 48 months
Notes
Notes:
The 2025 Kawasaki Mule SX™ LE is a compact and versatile side-by-side designed for both work and recreation. Here are three compelling reasons to consider this model:
1. Enhanced Off-Road CapabilityThe Mule SX™ LE comes equipped with features that enhance its off-road performance:
-
Selectable 2WD/4WD Drivetrain: Allows you to switch between two-wheel and four-wheel drive, providing flexibility for various terrains.
-
Dual-Mode Rear Differential with Differential Lock: Improves traction on slippery or uneven surfaces, ensuring better control and stability.
-
High-Clearance Tires: Larger tires offer improved ground clearance, helping you navigate obstacles with ease.
These features make the Mule SX™ LE suitable for navigating challenging landscapes, whether on a farm, trail, or construction site.
2. Durable and Practical DesignBuilt to withstand tough conditions, the Mule SX™ LE boasts:
-
Steel Cargo Bed: Durable and scratch-resistant, capable of handling heavy loads.
-
Impressive Towing Capacity: With a towing capacity of 1,100 lbs, it can haul substantial loads, making it ideal for transporting equipment or materials.(ridenowfortworth.com)
-
Compact Size: Its compact dimensions allow it to fit in the bed of a full-size pickup truck, offering easy transport and storage.(hkphooksett.com)
These design elements ensure the Mule SX™ LE is both practical and resilient for various tasks.(ridenowfortworth.com)
3. Comfort and Convenience FeaturesThe Mule SX™ LE is designed with user comfort in mind:
-
Ergonomic Seating: Designed to provide comfort during long hours of operation.
-
User-Friendly Controls: Simple and intuitive controls make operation straightforward, even for those new to side-by-sides.
-
Easy Maintenance: Accessible components simplify maintenance tasks, reducing downtime and service costs.
These features contribute to a more enjoyable and efficient experience, whether you're working or exploring.
The 2025 Kawasaki Mule SX™ LE combines rugged performance with practical design and user comfort, making it a valuable addition for those seeking a reliable and versatile side-by-side vehicle.
