Overview

Condition: New vehicle
Manufacturer: Kawasaki
Model: Teryx S LE
Year: 2025
Stock #: K9417
Type: Sides-by-sides
VIN: JKBRFCJ17SB506565
Engine: 9999
Vehicle ID: c90d48e2-4aac-4774-a111-2c526f0c86f6
Type: Sides-by-sides

Specifications

POWER

Engine: 783cc, liquid-cooled, 4-stroke, SOHC 4-valve-per-cylinder 90° V-twin
Bore x Stroke: 85.0 x 69.0 mm
Compression Ratio: 10.7:1
Fuel System: Fuel injection: ø36 mm x 2
Ignition: Battery & coil (transistorised ignition)
Starting: Electric
Lubrication: Forced lubrication, wet sump
Transmission: Dual range CVT with centrifugal clutch and reverse
Final Drive: 2WD/4WD, shaft

CAPABILITY

Frame: Double-X reinforcement type, tubular carbon steel
Front Suspension / Wheel Travel: Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping / 272 mm (10.7 in)
Rear Suspension / Wheel Travel: Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping / 254 mm (10.0 in)
Steering: Rack and pinion with Electric Power Steering
Rake / Trail: 6.8° / 38 mm
Steering Angle (L/R): 37° (IN) / 32° (OUT), 37° (IN) / 32° (OUT)
Front Tires: MAXXIS Bighorn 2.0 27 x 9R14 6PR
Rear Tires: MAXXIS Bighorn 2.0 27 x 11R14 6PR
Front Brakes: Dual ø200 mm discs with two-piston calipers
Rear Brake: Enclosed wet multi-plate
Parking Brake: Enclosed wet multi-plate

DETAILS

Dimensions (LxWxH): 3,000 x 1,590 x 1,995 mm (118.1 x 62.6 x 78.5 in)
Wheelbase: 2,240 mm (88.2 in)
Road Clearance: 285/310 mm (standard/max preload) (11.2/12.2 in (standard/max preload))
Seat Height: 870 mm (34.3 in)
Curb Weight*: 724 kg (1,596 lb)
Fuel Capacity: 30 litres
Tread (F/R): 1,400 mm (55.1 in) / 1,330 mm (52.4 in)
Turning Radius: 5.4 m (17.7 ft)
Cargo Bed Dimensions (LxWxH): 700 x 1,100 x 265 (F) / 300 (R) mm (27.6 x 43.3 x 10.4 (F) / 11.8 (R) in)
Cargo Bed Capacity: 272 kg (600 lb)
Seating Capacity: 2
Vehicle Load Capacity: 499 kg (1,100 lb)
Towing Capacity: 590 kg (1,300 lb)
Lighting: 4x LED headlights
Instrumentation: Multi-function digital meter with digital speedometer, bar-style fuel gauge, clock, odometer, dual trip meters, hour meter, 2WD/4WD indicator, front differential lock indicator light, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, water temperature warning indicator, fuel injection warning indicator, oil pressure warning lamp
Warranty: 36 months
Kawasaki Protection Plus: 12 / 24 / 36 / 48 months

Notes

Notes

Notes:

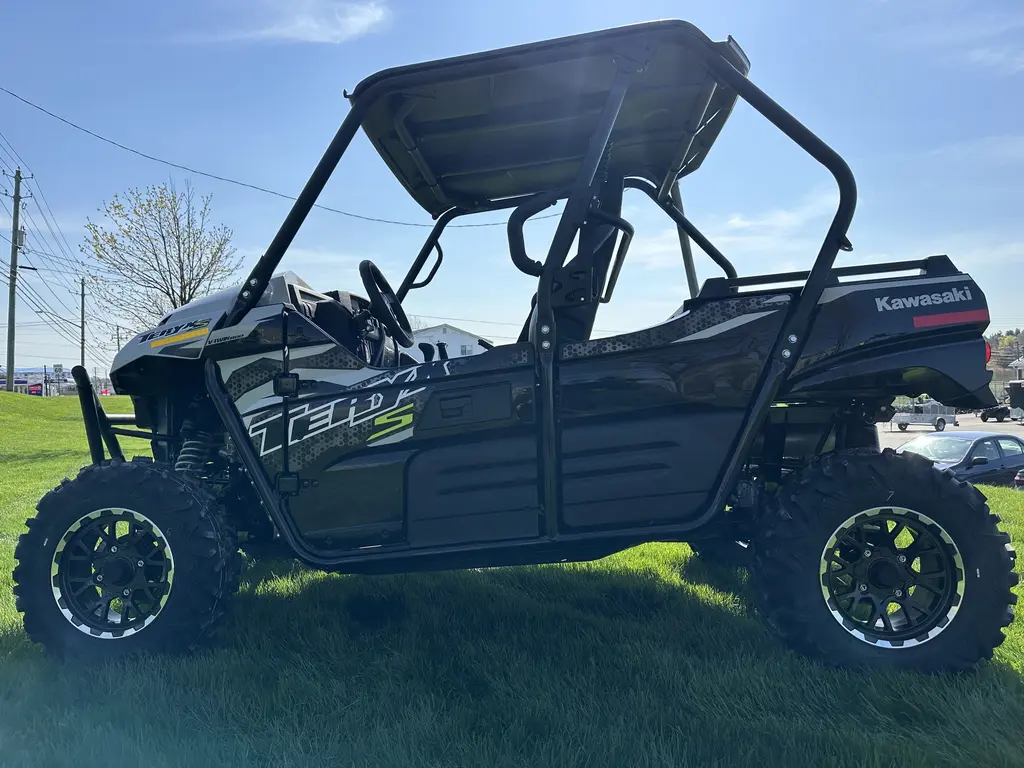

The 2025 Kawasaki Teryx S LE is a high-performance side-by-side vehicle designed for off-road adventures. It features a robust 783cc V-twin engine, a sport-tuned suspension, and an advanced four-wheel drive system for superior handling on rough terrain. The "S" in its name indicates a sportier design compared to standard models, while the "LE" stands for "Limited Edition," often including premium features like special paint schemes, upgraded components, and additional comforts. It combines rugged durability with enhanced off-road capabilities, making it suitable for both recreational and serious trail riding.
